Understanding Hand Brake Drum Mechanics and Their Importance in Vehicle Safety and Performance

Understanding the Hand Brake Drum System

The hand brake drum system is an essential component of modern vehicular braking systems, playing a pivotal role in ensuring safety and stability during vehicle operation. While most drivers may take the functionality of their brakes for granted, understanding how the hand brake drum works can enhance vehicle maintenance knowledge and promote safe driving practices.

What is a Hand Brake Drum?

The hand brake, also known as the parking brake or emergency brake, is typically engaged when a vehicle is parked. It is designed to keep the vehicle stationary even on inclined surfaces. The system usually utilizes a drum mechanism, where the hand brake exerts pressure to create friction against a drum attached to the wheel axle. This friction holds the vehicle in place, preventing it from rolling.

Components of the Hand Brake Drum System

1. Hand Brake Lever This is the manual control that the driver operates to engage or disengage the brake system. Pulling the lever applies tension through a cable connected to the brake drum.

2. Brake Drum The drum is a circular component usually made from cast iron or aluminum, which rotates along with the wheel. When the hand brake is applied, brake shoes press against the inside surface of the drum, generating the necessary friction to halt the wheel's motion.

3. Brake Shoes These are curved components that are pushed against the inside of the drum when the hand brake is engaged. The friction material on the brake shoes provides the stopping power, similar to that of conventional brake pads found in disc brake systems.

4. Cables and Connectors The operation of the hand brake involves cables that translate the lever's pull to the brake shoes. Over time, these cables can stretch or corrode, affecting their effectiveness.

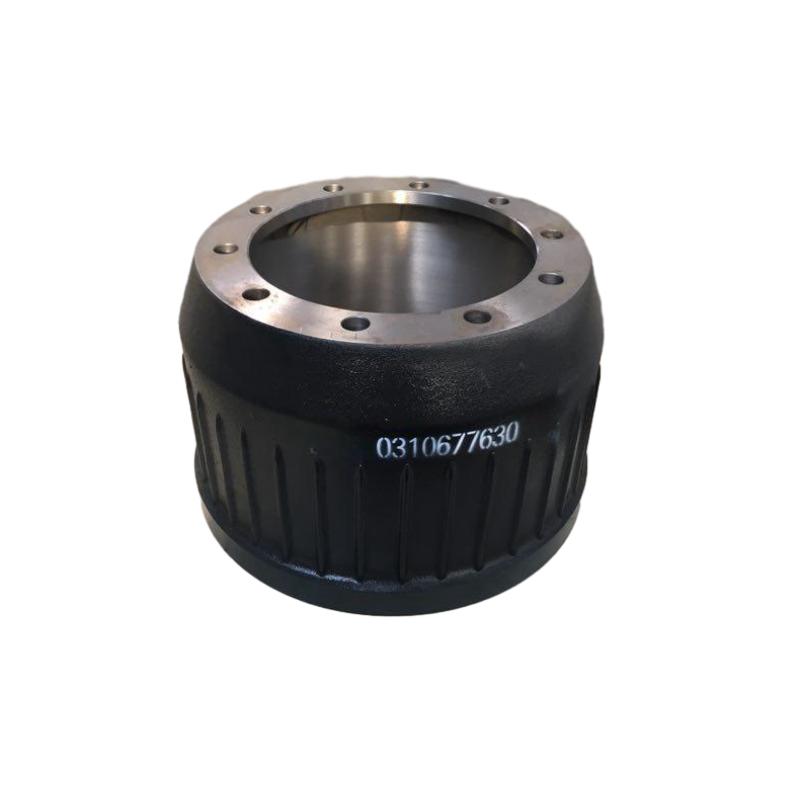

hand brake drum

How the System Works

When the driver pulls the hand brake lever, the mechanism pulls the cables, causing the brake shoes to expand outward. This expansion presses the shoes against the inner surface of the drum, creating friction. As a result, the wheels stop spinning, effectively immobilizing the vehicle. The more the lever is pulled, the greater the pressure exerted on the brake shoes, and therefore, the stronger the hold on the vehicle.

Advantages of a Drum System

One of the notable advantages of a hand brake drum system is its simplicity and reliability. Drum brakes tend to be more effective than disc brakes in holding static loads, which is crucial for parking. Additionally, the enclosed design of drum brakes protects the braking components from environmental factors, such as dirt and water, extending their lifespan.

Maintenance and Troubleshooting

To ensure optimal performance, regular maintenance of the hand brake drum system is critical. Drivers should periodically check the hand brake’s functionality to ensure it holds the vehicle securely. If the hand brake lever feels loose or requires excessive pulling to engage, it may indicate that the cables are stretched or that the brake shoes need adjustment or replacement.

Furthermore, the drum itself should be inspected for wear and tear. A worn drum can lead to uneven braking and may compromise safety. Regular inspections also help to identify any unusual noises, which might suggest that the brake shoes are no longer making proper contact with the drum.

Conclusion

Understanding the hand brake drum system is vital for any vehicle owner. It is a simple yet effective piece of engineering that plays a critical role in vehicle safety. By recognizing its components, functionality, and maintenance needs, drivers can better appreciate the importance of this system and ensure that their vehicles remain safe and reliable on the road. Regular checks and timely repairs will not only prolong the life of the hand brake but also enhance overall driving confidence.
